Description: Experience unparalleled control and precision with the 20KM GCS T40 Aviation Grade UAV FPV Ground Control Station, equipped with a highlight dual touch screen display and advanced features for professional-grade aerial operations. Designed for UAV (Unmanned Aerial Vehicle) pilots and operators, this ground control station offers a comprehensive solution for managing flight missions, monitoring telemetry data, and streaming FPV (First Person View) video with clarity and reliability. With its aviation-grade construction and ergonomic design, the T40 GCS provides a robust and intuitive platform for commanding your UAV with confidence.
Key Features:
- Highlight Dual Touch Screen Display: Two high-resolution touch screens provide clear and responsive interfaces for mission planning, flight monitoring, and video streaming.
- Aviation Grade Construction: Built to withstand demanding environments and harsh conditions, ensuring reliable performance in the field.
- Long Range Control: Offers a transmission range of up to 20km, allowing for extended flight distances and exploration.
- Comprehensive Channel Support: Equipped with 27 channels for precise control over UAV functions and accessories, including camera gimbal control and payload operation.
- Real-time Telemetry: Monitor crucial flight data and telemetry information in real-time, including aircraft position, altitude, battery status, and more.
- FPV Video Streaming: Enjoy immersive FPV video streaming from your UAV's onboard camera, providing live footage for situational awareness and mission feedback.
- Ergonomic Design: Ergonomically designed controls and interfaces ensure comfortable and efficient operation during long-duration flights and missions.
Elevate your UAV operations to new heights with the 20KM GCS T40 Aviation Grade UAV FPV Ground Control Station. Whether you're conducting aerial photography, surveying, mapping, or surveillance missions, this advanced ground control station provides the tools and capabilities you need to achieve your objectives with precision and confidence. Experience the ultimate in UAV control and performance with the T40 GCS.
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Material: Composite Material
Recommend Age: 12+y
RC Parts & Accs: Radio Systems
Size: 200MM
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Arm
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Battery
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: G20 G21
Four-wheel Drive Attributes: Battery
Wheelbase: Upper Shell

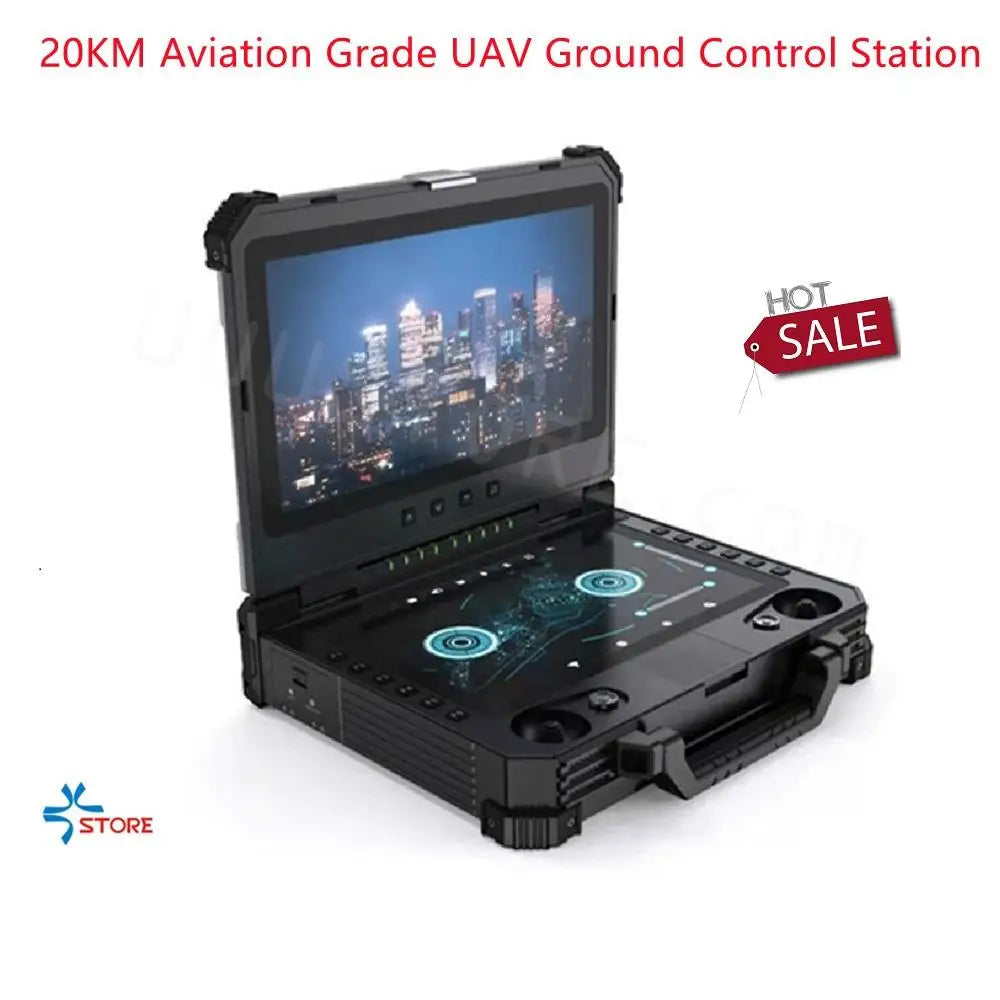

20KM GCS T40 Aviation Grade UAV FPV Ground Control Station 27CH With Highlight Dual Touch Screen Display ground control station
Channel：27 channels
Remote control distance：5km-20km
RF Power：V20: 0.1-1w(adjustable)
V21: 0.1-1w(adjustable)
V30: 0.1-1w(adjustable)
Working frequency：800MHZ/902-920MHZ
1.4Ghz/2.3Ghz/2.4GHZ/2.5GHZ
Auxiliary channel：Main joysticks*2(industrial joysticks with hall sensors)
Sub joysticks*4
Key button*12
Simulate keystrokes*7
Remote control delay：30ms
Battery capacity：16.8V/17000mAh(external battery also supported)
Fly time: 3.5h
Machine weight: 5980g
Display: 13.3inch 1920*1080 1000CCD + 12.1inch 1280*800 1500CCD
Touch Capacitive: 10-finger multi-touch display
Processor: 8565U/10500U
Memory: 8G
Storage capacity: 256GB SSD
Operating system: Win 7/Win10/Linux
Overall size 354mm(l)*280mm(w)*80mm(h)
Network interface: wifi/bluetooth/4G
